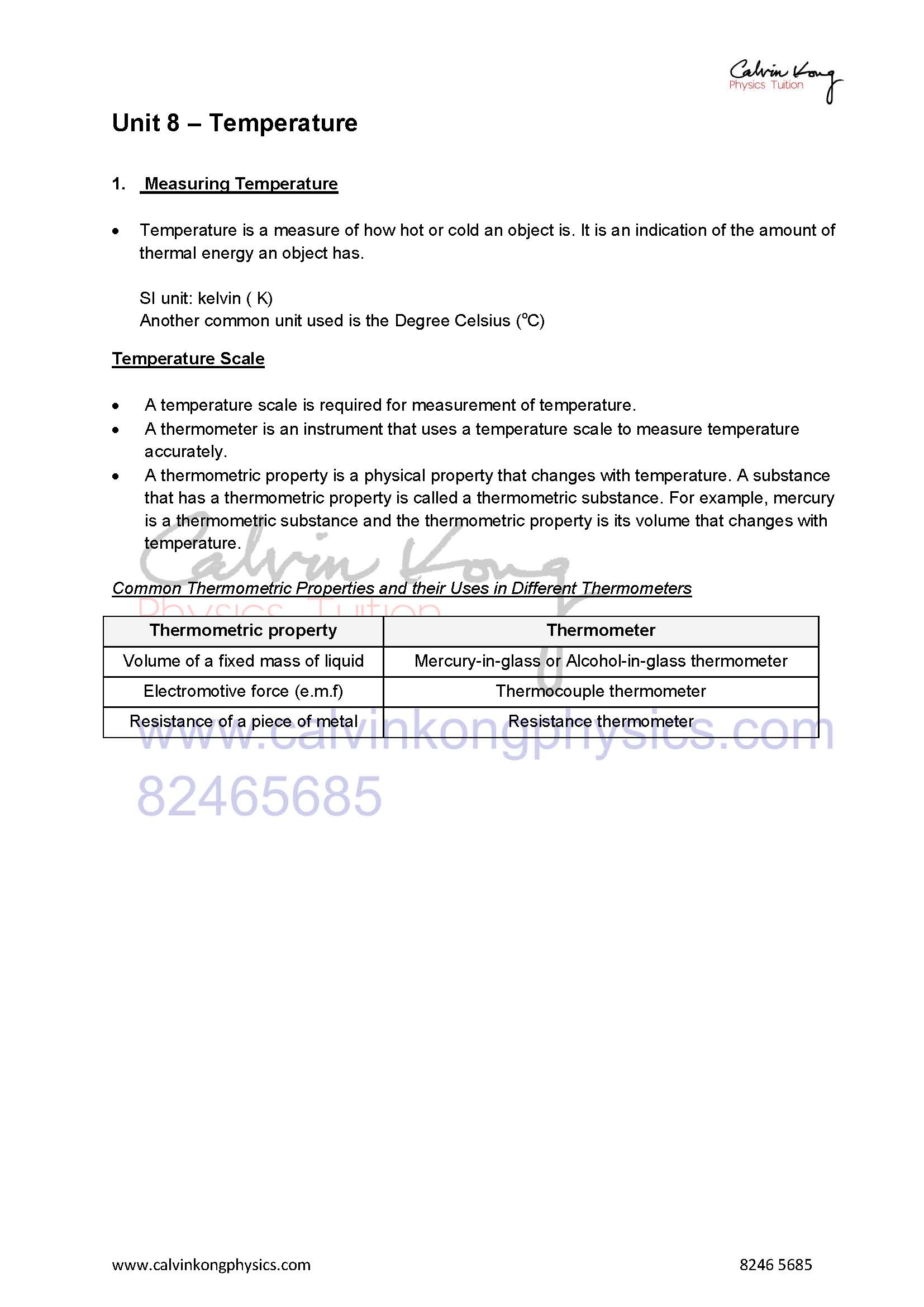

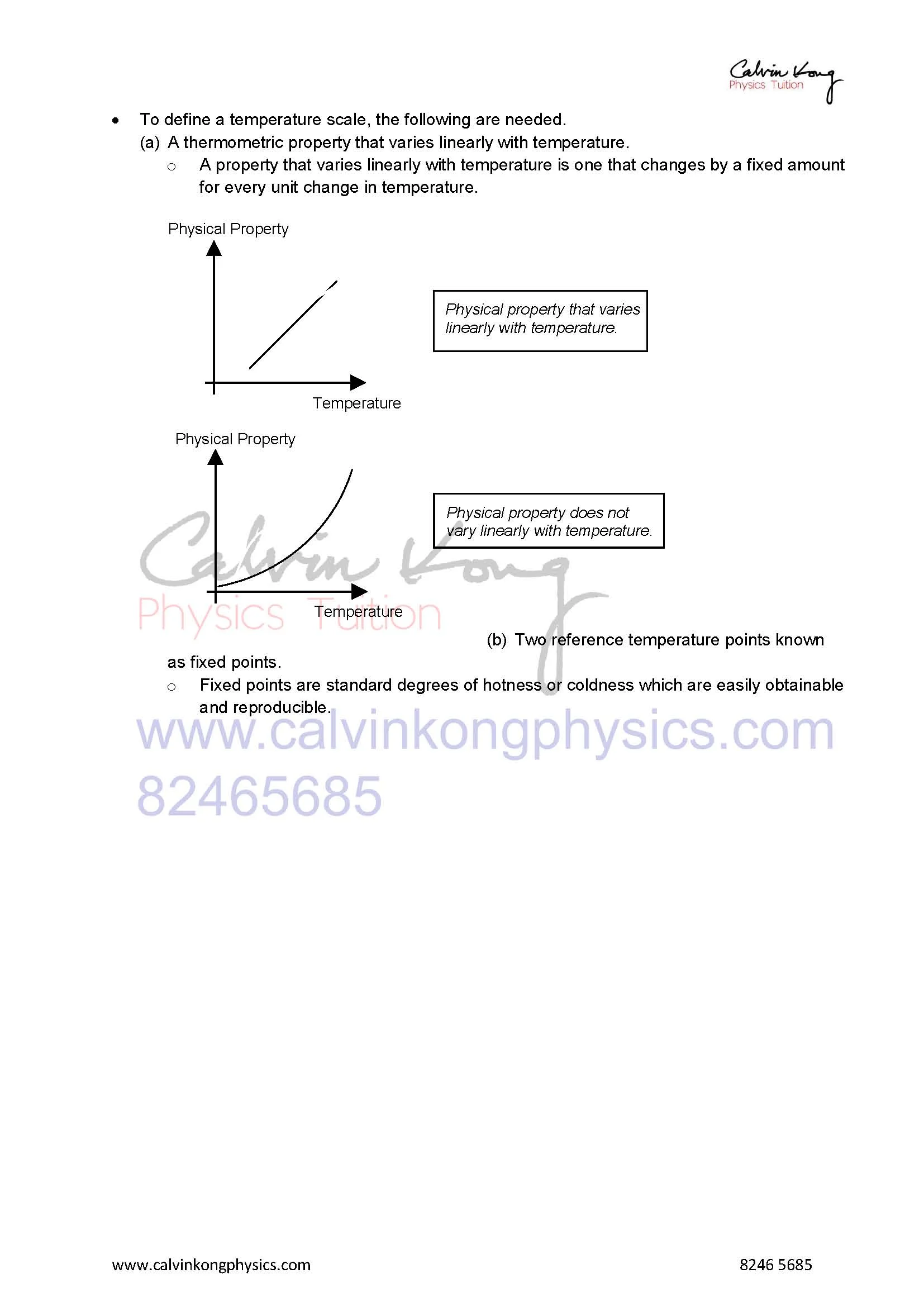

 8.1 Measuring Temperature

This section covers the following syllabus (Physics 5059) requirements.

• explain how a physical property which varies with temperature, such as volume of liquid column, resistance of metal wire and electromotive force (e.m.f.) produced by junctions formed with wires of two different metals, may be used to define temperature scales

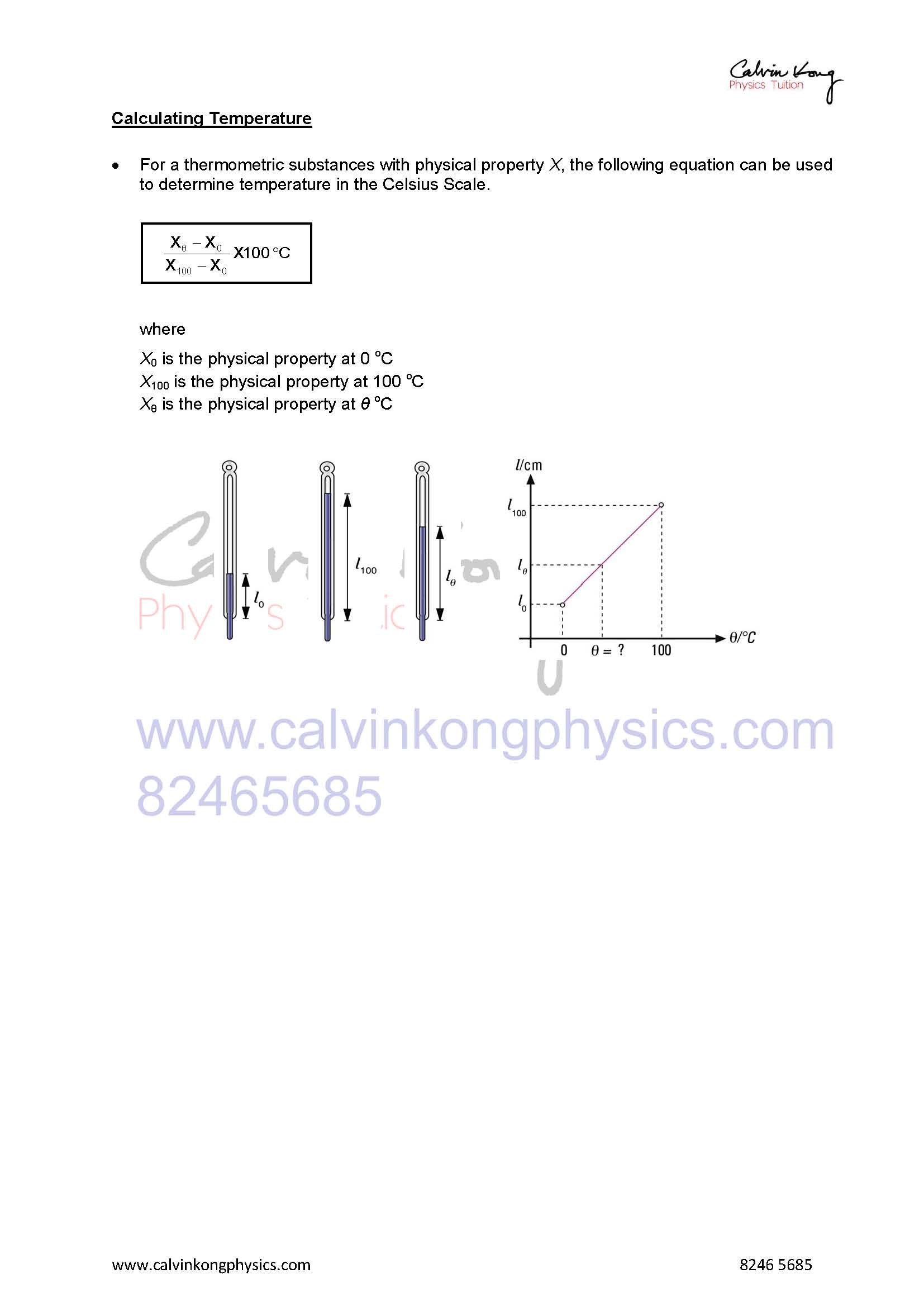

8.2 Calibrating a Liquid-in-glass Thermometer with the Celsius Scale

This section covers the following syllabus (Physics 5059) requirements.

• describe the process of calibration of a liquid-in-glass thermometer, including the need for fixed points such as the ice point and steam point

8.3 The Thermocouple Thermometer

This section covers the following syllabus (Physics 5059) requirements.

• explain how a physical property which varies with temperature, such as volume of liquid column, resistance of metal wire and electromotive force (e.m.f.) produced by junctions formed with wires of two different metals, may be used to define temperature scales.

9.1 The Kinetic Model of Matter

This section covers the following syllabus (Physics 5059) requirements.

• compare the properties of solids, liquids and gases
• describe qualitatively the molecular structure of solids, liquids and gases, relating their properties to the forces and distances between molecules and to the motion of the molecules

9.2 Brownian Motion

This section covers the following syllabus (Physics 5059) requirements.

• infer from Brownian motion experiment the evidence for the movement of molecules
• describe the relationship between the motion of molecules and temperature

9.3 Pressure in Gases

This section covers the following syllabus (Physics 5059) requirements.

• explain the pressure of a gas in terms of the motion of its molecules
• recall and explain the following relationships using the kinetic model (stating of the corresponding gas laws is not required):

(i)    a change in pressure of a fixed mass of gas at constant volume is caused by a change in temperature of the gas

(ii)   a change in volume occupied by a fixed mass of gas at constant pressure is caused by a change in temperature of the gas

(iii)  a change in pressure of a fixed mass of gas at constant temperature is caused by a change in volume of the gas

•  use the relationships in (f) in related situations and to solve problems (a qualitative treatment would suffice)

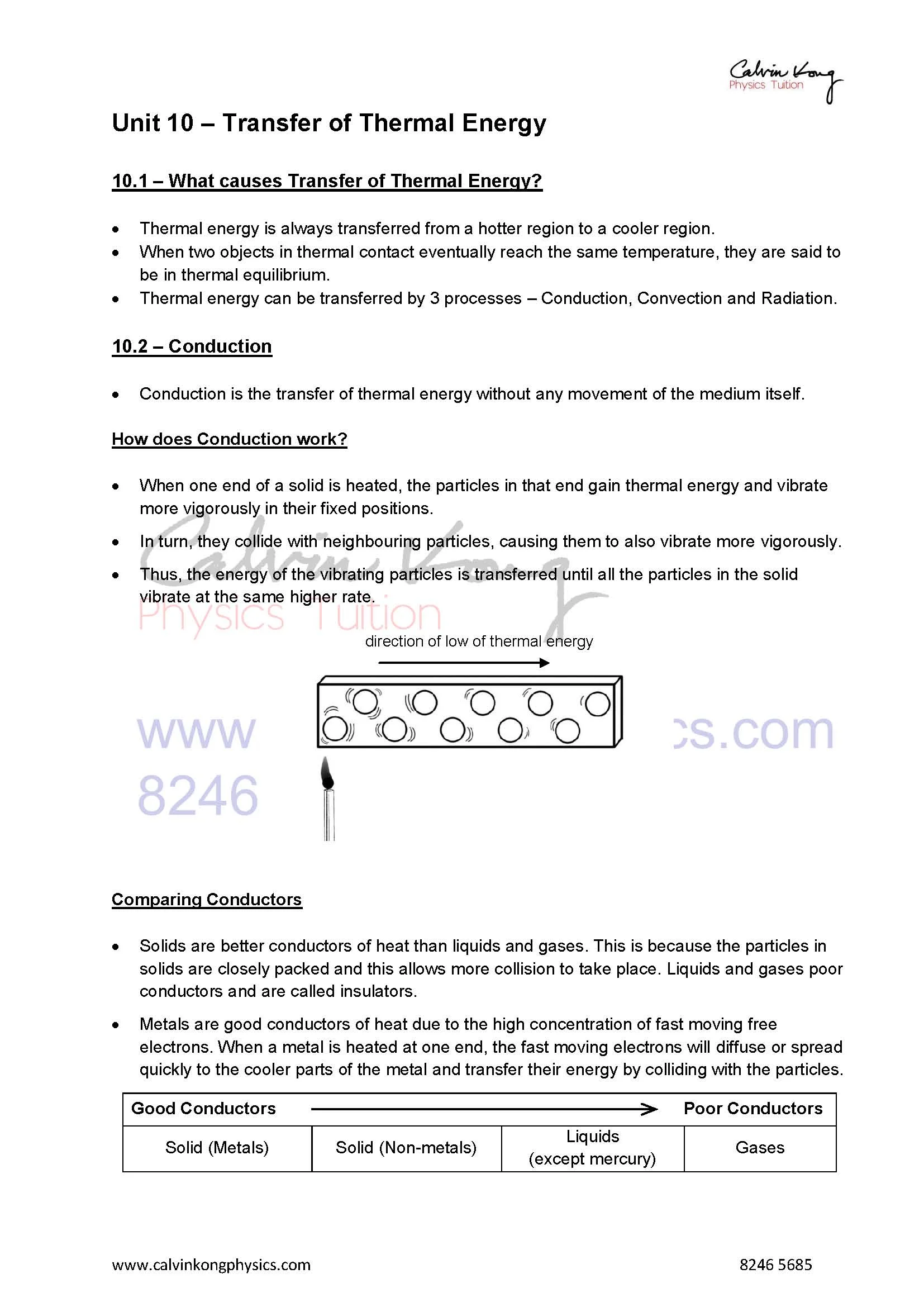

10.1 Conduction

This section covers the following syllabus (Physics 5059) requirements.

• show understanding that thermal energy is transferred from a region of higher temperature to a region of lower temperature
• describe, in molecular terms, how energy transfer occurs in solids
• apply the concept of thermal energy transfer (conduction) to everyday applications

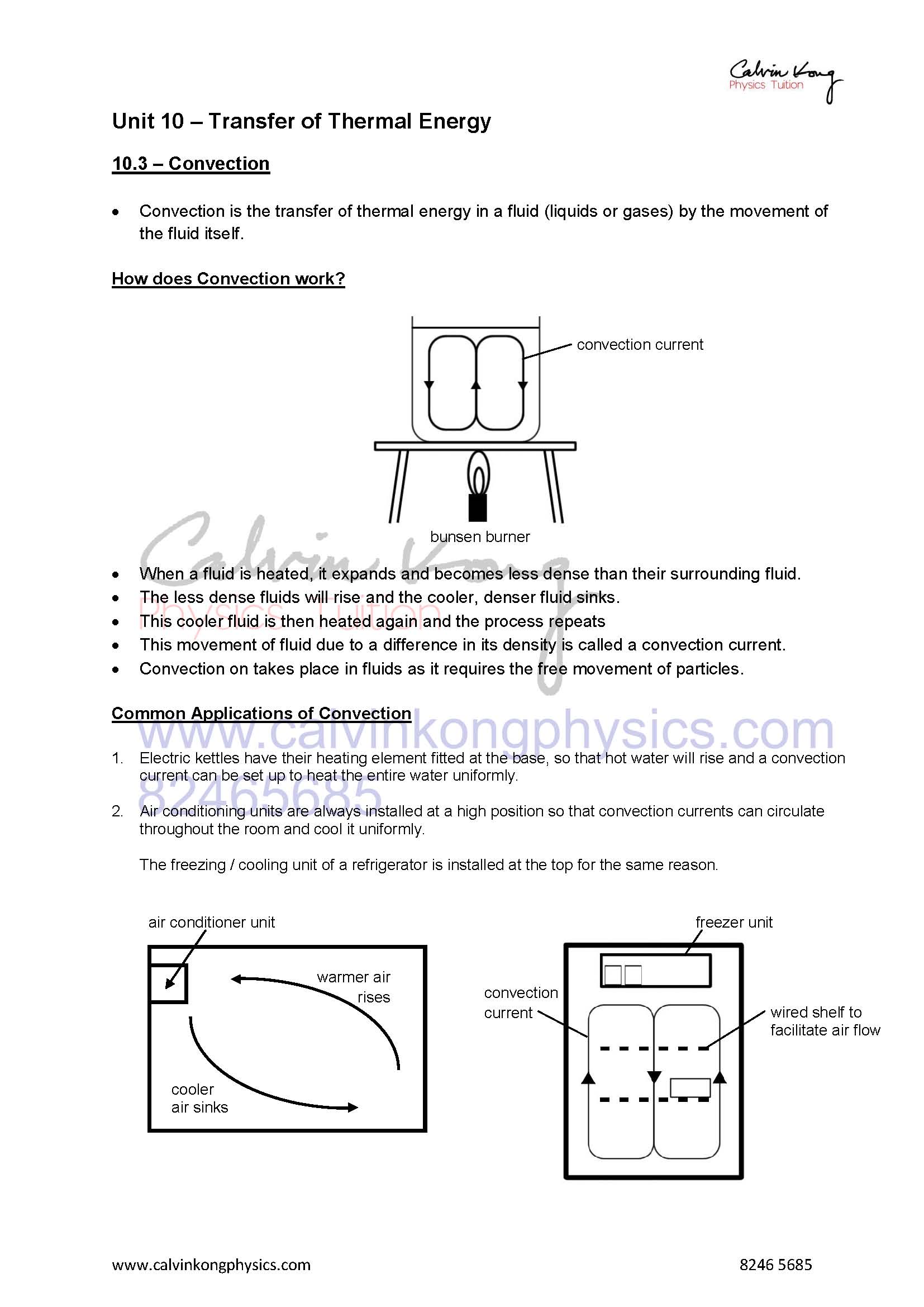

10.2 Convection

This section covers the following syllabus (Physics 5059) requirements.

• describe, in terms of density changes, convection in fluids
• apply the concept of thermal energy transfer (convection) to everyday applications

This section covers the following syllabus (Physics 5059) requirements.

• explain that energy transfer of a body by radiation does not require a material medium and the rate of energy transfer is affected by:

(i) colour and texture of the surface

(ii) surface temperature

(iii) surface area

• apply the concept of thermal energy transfer (radiation) to everyday applications

11.1 Internal Energy

This section covers the following syllabus (Physics 5059) requirements.

•  describe a rise in temperature of a body in terms of an increase in its internal energy (random thermal energy)

11.2 Specific Heat Capacity

11.2 - Specific Heat Capacity

This section covers the following syllabus (Physics 5059) requirements.

• define the terms heat capacity and specific heat capacity
• recall and apply the relationship thermal energy = mass × specific heat capacity × change in temperature to new situations or to solve related problems

11.3 Latent Heat

This section covers the following syllabus (Physics 5059) requirements.

• define the terms latent heat and specific latent heat
• recall and apply the relationship thermal energy = mass × specific latent heat to new situations or to solve related problems

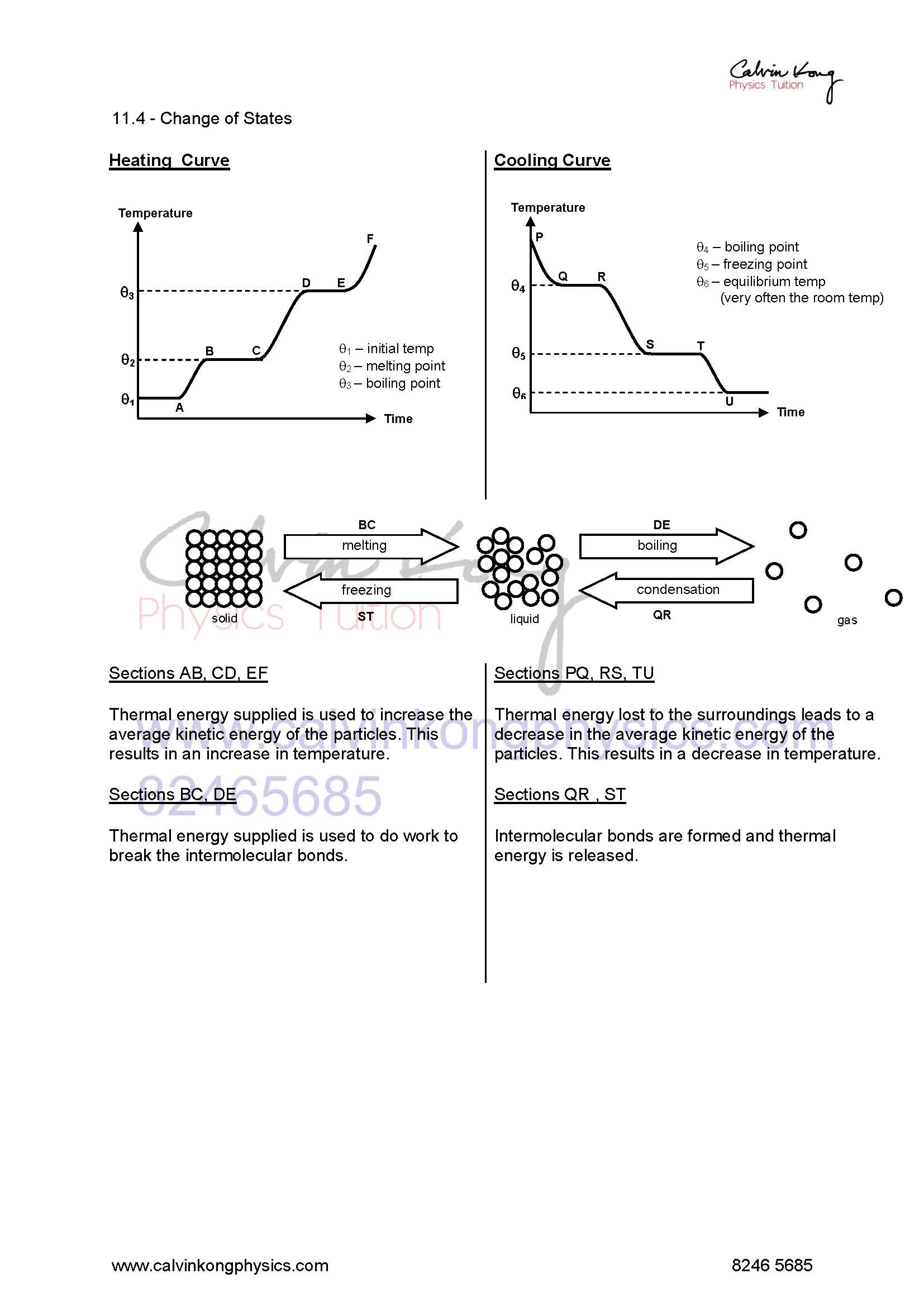

11.4 Change of States

This section covers the following syllabus (Physics 5059) requirements.

• describe melting/solidification and boiling/condensation as processes of energy transfer without a change in temperature
• sketch and interpret a cooling curve

11.5 Evaporation

This section covers the following syllabus (Physics 5059) requirements.

• explain the difference between boiling and evaporation
